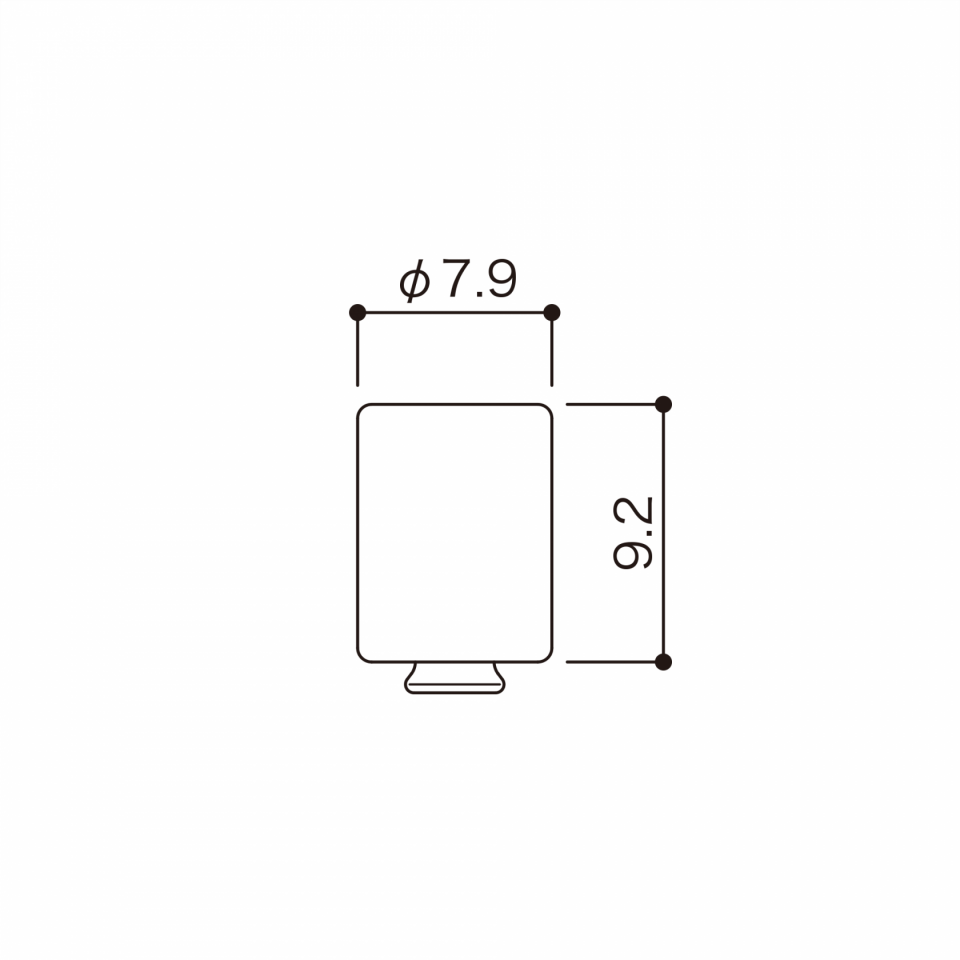

AU-72 black
Product information "AU-72 black"
Material: brass
Surface: black galvanised

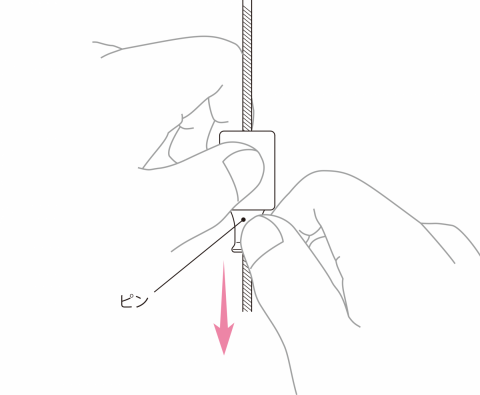

Insert the wire rope into the carrier and the carrier will automatically enclose the rope tightly.
Objects to be installed can simply be placed on top of the carrier.
Select cable thickness by weight:
0.6mm (2/85")- 3kg (7lbs)
0.8mm (3/95") - 5kg (11lbs)
1mm (3/76") - 6kg (13lbs)
1.2mm (1/21") - 8kg (18lbs)
| File | Category | Size | File type |
|---|---|---|---|
| AU-72 schwarz | Technical Drawings DXF | 10.37 KB | dxf |
