Material: stainless steel, die-cast zinc Surface: satinised, matt nickel-plated Hook with screw cap for safer installations (especially in high traffic areas). Includes an ‘S’ (safety) cap to prevent unwanted movement by manually locking the mechanism. Suitable for cables with a thickness of 1mm, 1.2mm and 1.5mm. Selection of cable thickness by weight: 1mm (3/76") - 8kg (18lbs) 1.2mm (3/64") - 10kg (22lbs) 1.5mm (1/16") - 30kg (66lbs)

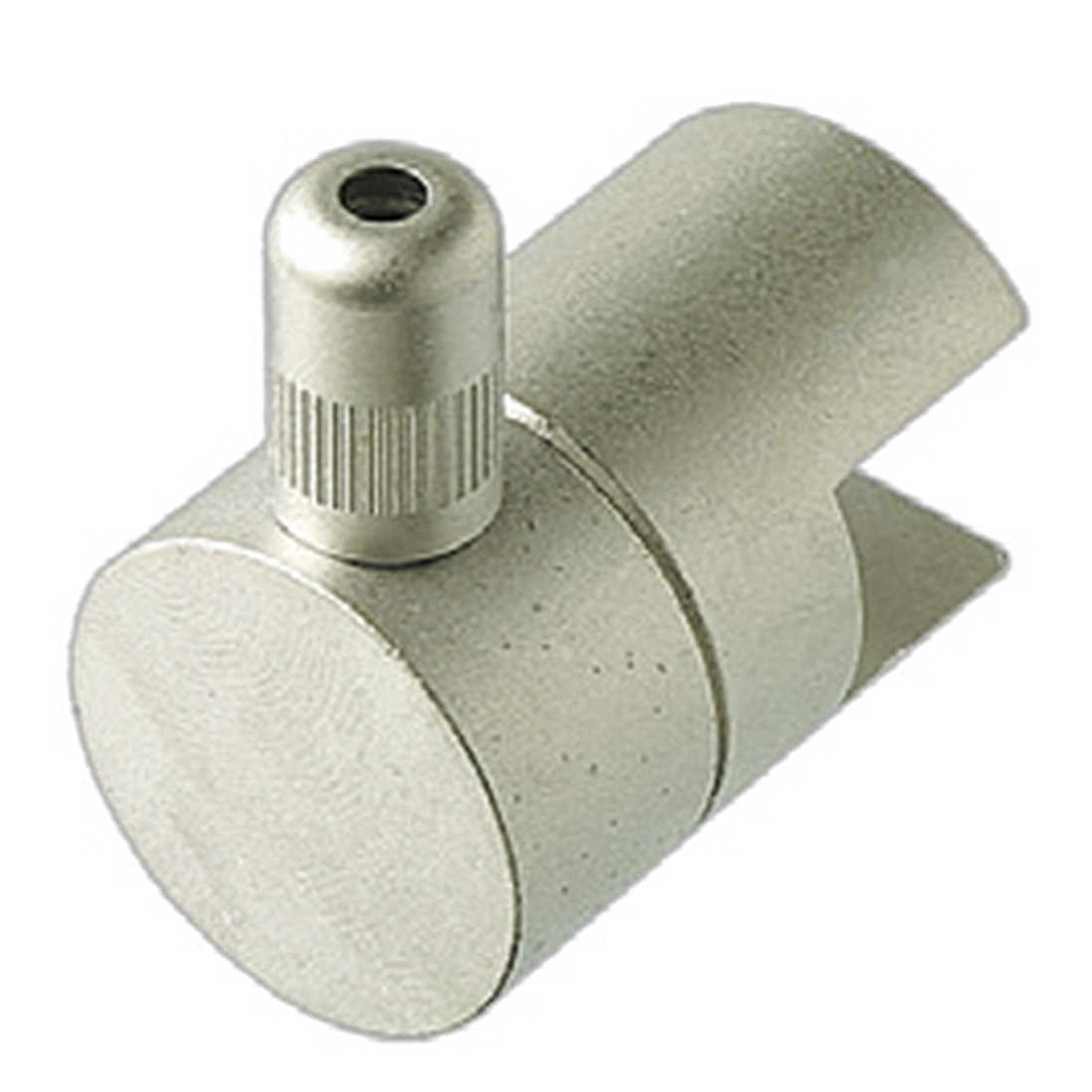

Material: brass Finish: matt nickel-plated The BRG type swivelling support is designed to hold lightweight glass or perspex shelves either horizontally or at an angle.
Similar to the FRG, but it accepts smaller cables and lighter loads to emphasise a more invisible appearance.
The BRG type holds a vertical plate with a plastic screw. The permissible weight of the plates depends on the plate materials used and the conditions of the installation space. Includes ‘S’ (safety) cap that prevents unintentional adjustment by manually locking the mechanism.
The thickness of the shelves must be 5-8mm. Suitable for cables with a thickness of 1mm, 1.2mm and 1.5mm. Select cable thickness according to weight: 1mm (3/76") - 8kg (18lbs) 1.2mm (3/64") - 10kg (22lbs) 1.5mm (1/16") - 30kg (66lbs)
Material: stainless steel Surface: satinised Includes ‘S’ (safety) cap, which prevents unintentional adjustment by manually locking the mechanism. Selection of cable thickness according to weight: 2.5mm (6/61") - 70kg (154lbs) 3.0mm (1/8") - 100kg (220lbs)
Material: stainless steel fine polish Finish: satinised (ring: chrome-plated) The BS21 integrates the familiar spherical gripper body into a ring.
Suitable for banners, flags and other materials. Suitable for cables with a thickness of 1mm and 1.5mm. Maximum weight capacity with 1mm cable thickness: 20kg distributed over 2 cables Maximum weight capacity with 1.5mm cable thickness: 35kg distributed over 2 cables
Material: stainless steel, brass, steelFinish: nickel-plated, chrome-plated in one colour
BS27 is designed as a ceiling attachment for use in suspended ceilings, which is attached either to the concrete structure, to Unistrut or similar. The hollow structure allows excess cable to pass through the BS27 and, depending on the ceiling structure, into the ceiling void. 2 washers and 2 nuts are included.Suitable for cables with a thickness of 1mm to 1.5mm. Select cable thickness according to weight: 1mm (3/76") - 8kg (18lbs) 1.2mm (3/64") - 10kg (22lbs) 1.5mm (1/16") - 30kg (66lbs)
Material: brass Surface: matt nickel-plated The BRB type swivelling bracket is ideal for lightweight wooden shelves or hanging rods.
It is similar to the FRB, but smaller and accommodates smaller cables and lighter loads to emphasise a more invisible appearance. Includes ‘S’ (safety) cap that prevents unintentional adjustment by manually locking the mechanism. Suitable for cables with a thickness of 1mm, 1.2mm and 1.5mm. Selection of cable thickness by weight: 1mm (3/76") - 8kg (18lbs) 1.2mm (3/64") - 10kg (22lbs) 1.5mm (1/16") - 30kg (66lbs)
Material: stainless steel, brass, steel Finish: matt nickel-plated, single-colour chrome-plated MF27 is designed as a ceiling attachment for use in suspended ceilings, which is attached either to the concrete structure, to Unistrut or similar. The hollow structure allows excess cable to be fed through the MF27 and, depending on the ceiling structure, into the ceiling void. 2 washers and 2 nuts are included. Cable thickness selection by weight:
3mm (1/8") - 100kg (220lbs)
Material: stainless steel, brass, steel Finish: matt nickel-plated, single-colour chrome-plated MF27 is designed as a ceiling attachment for use in suspended ceilings, which is attached either to the concrete structure, to Unistrut or similar. The hollow structure allows excess cable to be fed through the MF27 and into the ceiling void depending on the ceiling structure.
Includes an ‘S’ cap (safety cap) that prevents unwanted adjustment by manually locking the mechanism. 2 washers and 2 nuts are included. Cable thickness selection by weight: 3mm (1/8") - 100kg (220lbs)
Material: stainless steel, brass Finish: satinised, matt nickel-plated Includes ‘S’ (safety) cap, which prevents unintentional adjustment by manually locking the mechanism. Selection of cable thickness according to weight: 2.5mm (6/61") - 70kg (154lbs) 3mm (1/8") - 100kg (220lbs)
Material: brass Surface: matt nickel-plated Swivelling support with possible 360° rotation. Selection of cable thickness according to weight: 1mm (3/76") - 8kg (18lbs) 1.2mm (3/64") - 10kg (22lbs) 1.5mm (1/16") - 30kg (66lbs)
Material: Fine-ground stainless steel BS-20RP-S (R-round, P-lock, S-safety cap):
Hook with a carabiner-style closure for safer installations (especially in earthquake-prone areas). Features an ‘S’ cap (safety cap) that prevents unwanted adjustment by manually locking the mechanism. Suitable for cables with a thickness of 1mm, 1.2mm and 1.5mm. Selection of cable thickness according to weight:
1mm - max. 8kg
1.2mm - max. 10kg
1.5mm - max. 30kg
Material: stainless steel fine finish Hooks with a carabiner-like closure for safer installations (especially in earthquake-prone areas). Suitable for cables with a thickness of 1mm, 1.2mm and 1.5mm. Select cable thickness by weight: 1mm - max. 8kg
1.2mm - max. 10kg 1.5mm - max. 30kg
