CRJ picture rail (30kg/66lbs)
Product information "CRJ picture rail (30kg/66lbs)"
Material: aluminium, cover: plastic
Surface: anodised aluminium, cover: white
Type: wall-mounted
Length: 2000mm (6.56 ft)
Anchor placement: within 300m (1 ft)

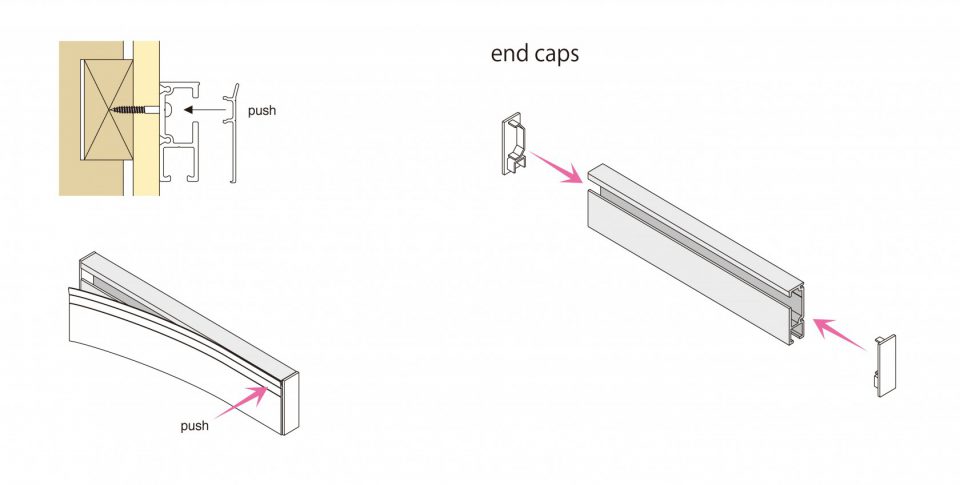

End caps included.

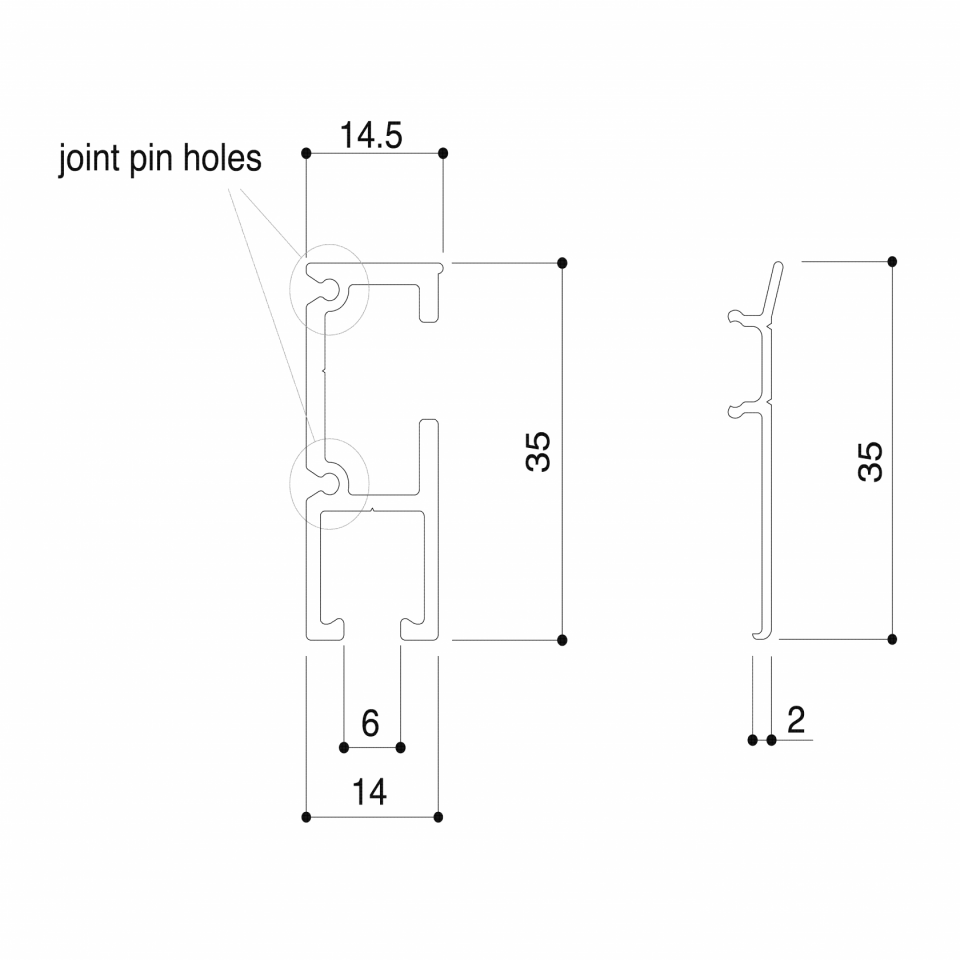

Rails are available in 2000mm (6.56 ft) lengths and include a white painted cover and alignment pins to connect adjacent rails.
Mounts easily to the wall and can be joined together for seamless coverage of longer sections. The rail fixings can be attached anywhere on the rail and can be moved horizontally along the rails.
Suitable for cables with a thickness of 1mm to 1.5mm.
Cable thickness selection by weight:
1mm (3/76") - 8kg (18lbs)
1.2mm (3/64") - 10kg (22lbs)
1.5mm (1/16") - 30kg (66lbs)
