MH-3 picture rail (70kg/154lbs)
Product information "MH-3 picture rail (70kg/154lbs)"
Material: aluminium
Surface: anodised aluminium (white)
Type: wall-mounted
Length: 2000mm (6.56 ft)
Anchor placement: within 300mm (1 ft)

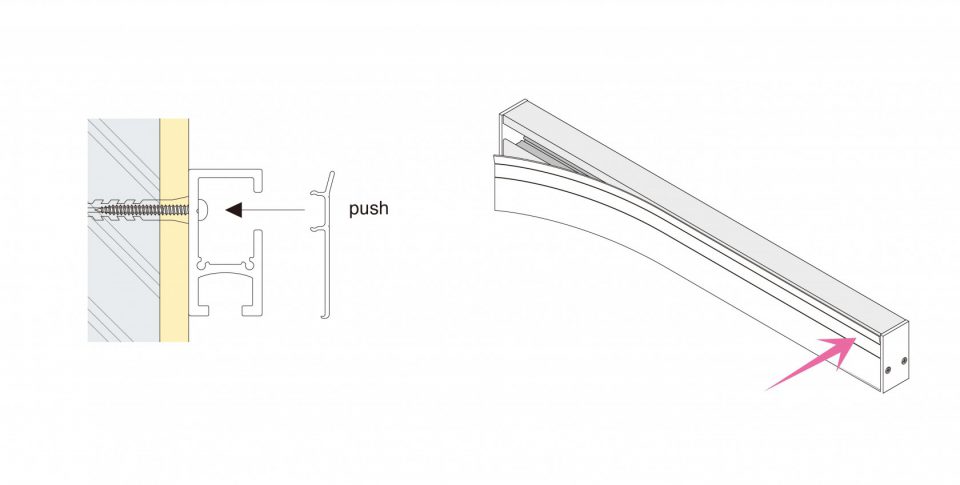

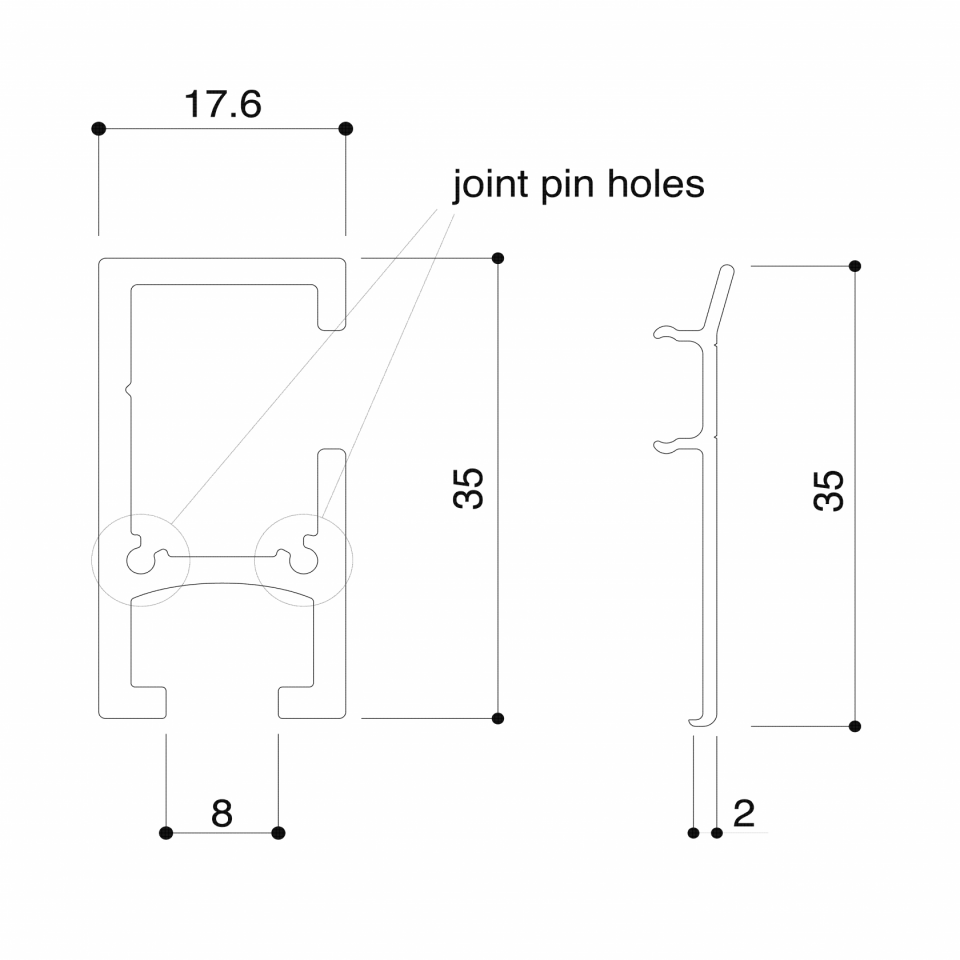

The picture rail is an aluminium rail with an anodised finish. Includes a rail cover and two alignment pins to connect adjacent rails.
Like the CRE and CRJ rails, the MH3 rails can be joined together to provide seamless coverage over longer distances.

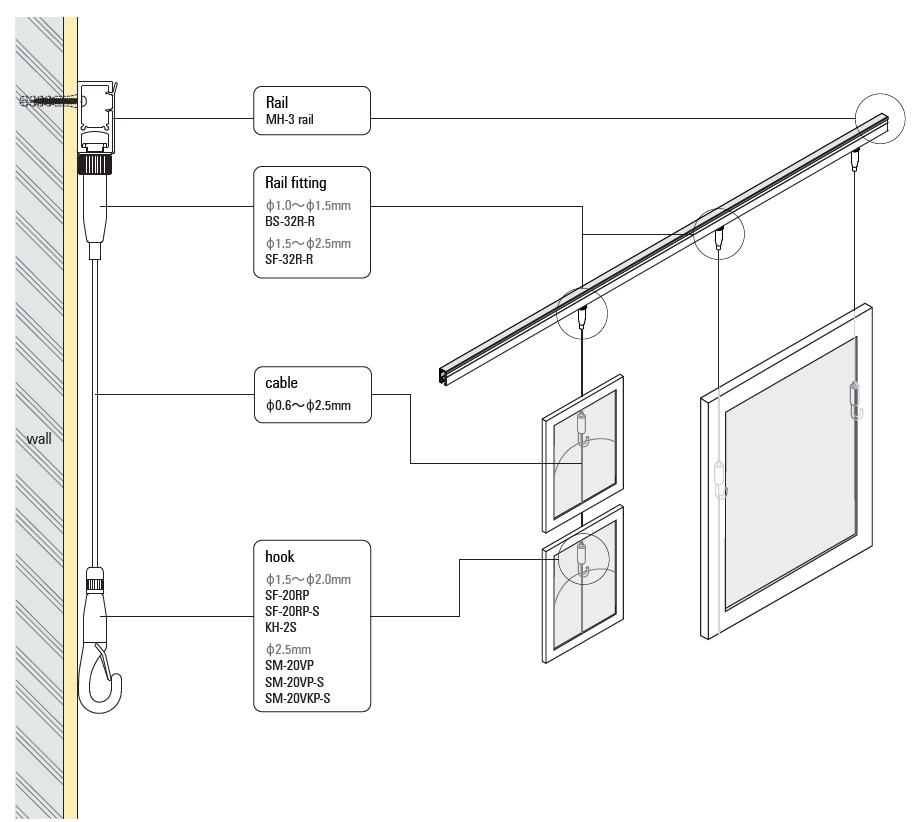

The rail is compatible with CRB/CRC rail fittings (BS1R, BS32R, BS23BRSET and BS23DRSET) and MH rail fittings (MJ1B, MJ1BJ, MJ1C, MJBC and TF32TUR).
Suitable for cables with a thickness of 1mm (3/76‘) to 2.5mm (3/32’).
Cable thickness selection by weight:
1mm (3/76") - 8kg (18lbs)
1.2mm (3/64") - 10kg (22lbs)
1.5mm (1/16") - 30kg (66lbs)
2mm (5/64") - 50kg (110lbs)
2.5mm (3/32") - 70kg (155lbs)
