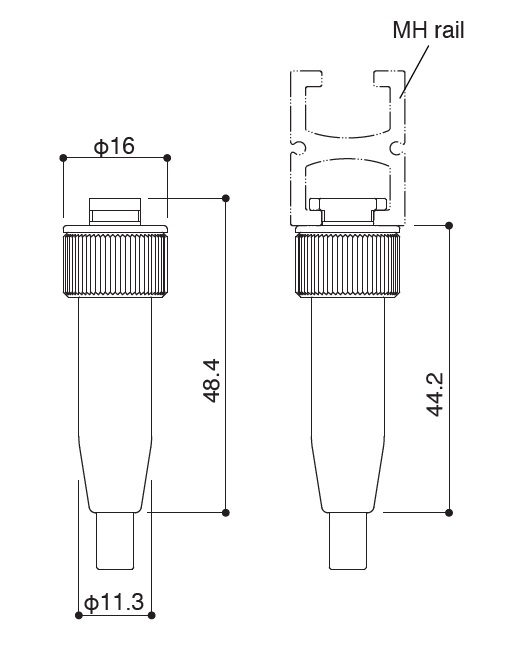

Rail fastening SF-32R-R for MH-3
Product information "Rail fastening SF-32R-R for MH-3"
Material: Stainless steel, brass
Finish: fine polish, matt nickel-plated

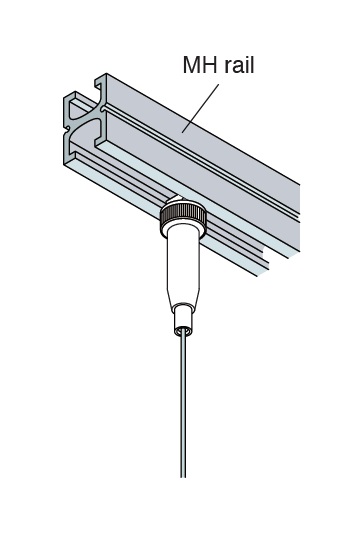

Spherical, fixed rail fastening, suitable for the MH rail system. The rail clamp can be inserted and removed at any point on the rail so that individual parts can be easily added or removed without having to remove the neighbouring artwork.
A soldered cable end is used.
Suitable for cables with a thickness of 1.5mm (1/16‘) to 2.5mm (3/32’).
Select cable thickness by weight:
1.5mm (1/16") - 30kg (66lbs)
2mm (5/64") - 50kg (110lbs)
2.5mm (3/32") - 70kg (155lbs)
