VH-4 picture rail (150kg/330lbs)
Product information "VH-4 picture rail (150kg/330lbs)"
Material: aluminium
Surface: anodised aluminium
Type: wall mounted
Length: 2000mm (6.56 ft)
Anchor placement: within 300mm (1 ft)
Ideal for hanging heavy artwork that can be moved along the rail.

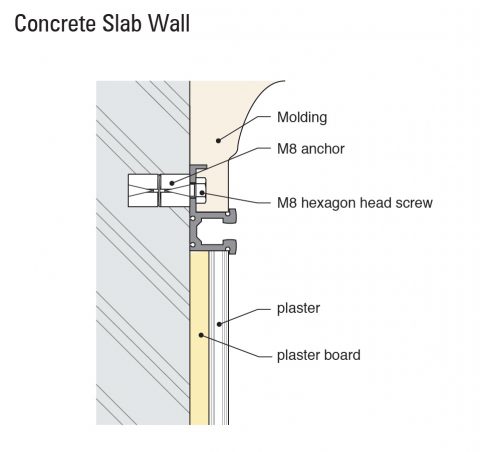

The picture rail is designed to be fitted before the walls are finished and painted.
Suitable for cables with a thickness of 1.5mm (1/16‘) to 4mm (3/19’).
Select cable thickness by weight:
1.5mm (1/16") - 30kg (66lbs)
2mm (5/64") - 50kg (110lbs)
2.5mm (3/32") - 70kg (155lbs)
3mm (1/8") - 100kg (220lbs)
4mm (3/19") - 150kg (330lbs)
